Editing worksheets

Here we give an overview of how to edit worksheets. More info can be found in Tests notebook

Common files

There are a bunch of files common to all worksheets and possibly website

You do not need to change them (except maybe my_lib.py)





Student zips


back end stuff



utilities for worksheets




custom utilities example




Javascript code












Running Jupyter

First of all, run Jupyter from the root directory:

jupyter notebook

Source code for chapters

Put chapters one per folder, in the root. Any folder which doesn’t start with underscore _ or exam/ will be considered a chapter.

During build, each chapter gets automatically zipped and zip goes to _static/generated. So for example, python-example/ produces a zip called _static/generated/python-example.zip, which will have these contents:


The zip folder structure will be a merge of chapter files and files shared by all chapters which are specified in exercises_common_files variable in conf.py. Since the root in the zip becomes the chapter itself, jupman will process .py and .ipynb files for fixing eventual relative imports. Markdown, HTML and CSS links in ipynb will also be adjusted.

Exercise files can be automatically generated from solutions, as we will see next.

Exercise types

There can be three kinds of exercises: exercises in Python files, exercises in Jupyter files and mixed jupyter and Python exercises.

You can automatically generate an exercise from a solution file by stripping text marked with special tags. You can inspect generated files in _build/jupman/ directory

On the website, students will be able to see solutions by clicking on appropriate buttons.

In the zips to download, two versions of files will provided, one without solution and one with solutions (in exam modality of course no solution will be shipped)

Exercises in Python files

See python-example/python-example.ipynb

In this type of exercises, typically you have a Jupyter file (like python-example.ipynb) that describes the exercise and then the actual exercises are in Python files.

If there is a solution file FILE_sol.py ending in _sol.py but no corresponding exercise file FILE.py without the _sol:

then Jupman will try to generate FILE.py one from FILE_sol.py. To do so, it will look for tags to strip inside the solution file.

If there is already an exercise file like this:

  • python_intro.py

  • python_intro_sol.py

Jupman will just copy the existing file.

Exercises in Jupyter files

See example: jupyter-example/jupyter-example-sol.ipynb

This type of exercises stay in a Jupyter notebook itself.

If there is a notebook ending in -sol.ipynb, the following applies (WARNING: for ipynb files we use dash -, not the underscore _):

  • the notebook must contain tags to strip

  • exercises derived will have ‘EXERCISES’ appended to the title (the word can be customized in conf.py - you might need to translate it)

Mixed exercises in Jupyter and Python files

See jup-and-py-example/jup-and-py-example-sol.ipynb


This is an experimental feature, current implementation is subject to change.

Challenges are solutions which remain unpublished and from which exercises are generated in the same original older where the solution resides (not only in the zip!). Challenge files can be both Jupyter notebooks or Python files, ending in -chal-sol.ipynb or _chal_sol.py.

The idea is that challenges solutions are gitignored, and exercises are manually generated by calling jupman.generate_exercise() inside a Jupyter notebook like this:

import sys; sys.path.append('../'); from conf import jm;

It is a bit laborious but the idea is that typically you will also want to run and see tests results in Jupyter notebook so you can do it in the same final cell, which you will also probably want to set in cell metadata "nbsphinx":"hidden"

  • the solution notebook must contain tags to strip and have SOLUTIONS at the end of the title (the word can be customized in conf.py - you might need to translate it)

Solution tags

Presence of these tags marks a cell as a solution.

Start tags begin with a # while end tags begin with a #\


Replaces code inside with an Exception (text is customizable in conf.py). Be careful to position the comment exactly with the indentation yuoi want the raise to appear. For example:

def add(x,y):
    return x + y


def add(x,y):
    raise Exception('TODO IMPLEMENT ME !')


Just strips code inside exercises

def f(x):

def help_func(x,y):
    return x - y

def g(y):
    return y


def f(x):

def g(y):
    return y

write here

This special tag for python code erases whatever is found afterwards the # write here line

  • you can put how many spaces you want in the comment

  • phrase can be customized in conf.py

w = 5

#  write  here  fast please

x = 5 + w
y = 2 + x


w = 5

#  write  here  fast please


In a code cell, if you put # SOLUTION at the beginning the whole cell cell content gets deleted (# SOLUTION string included).

  • Word can be customized in conf.py


def f():

becomes nothing:

[ ]:


In a markdown cell, everything in a cell with **ANSWER**: inside will be stripped.

  • Markdown can be customized in conf.py

QUESTION: Describe why iPhone n+1 is better than iPhone n

ANSWER: it costs more


QUESTION: Describe why iPhone n+1 is better than iPhone n

[ ]:

Directive tags

Some tags change the preprocessor behaviour. They are applied before solution tags.


Eliminate content both from exercises AND solutions. Can be helpful when you have code which creates expected output, like images or python data - the idea is to completely remove code so so students don’t accidentally copy-paste it or uncomment it.

  • jupman-purge-input: purges only cell source

  • jupman-purge-output: purges only cell output

  • jupman-purge-io : purges both input and output

jupman-purge purges only a span:

jupman.save_py('expected_output_db.py', ['big', 'data', 'structure']*1000)




By default only notebooks solutions (ending in -sol.ipynb) are preprocessed before html conversion begins. If you want to force preprocessing on a particular non-solution notebook, add this in the first cell:


Hiding cells

A way to hide cells (like for example the import jupman code) is by clicking View->Cell toolbar -> Edit metadata and adding "nbsphinx": "hidden" to the JSON (see also original NBSphinx docs and Togglable cells in Jupman tests ).

NOTE 1: As of NBSphinx 2.17, it is not possible to hide only cell text but not the output.

Info boxes

Supported boxes are inherited from NBSphinx with div classes "alert alert-info", "alert alert-warning"

See Rendering tests for examples.

Plus we add jupman-alert-principle: some alerts to be often reminded can be preceded with an empty div having class jupman-alert-principle followed by a regular alert box, so they will display as you want on the website and as fallback boxes in the pdf (did this way as we can’t add classes nor other attributes, tried also data-jupman html attributes with no success)

NOTE: default colors are indicative and minimal on purpose, for a better view see softpython themed version

Recommended approach: The typical principle alert should be brief and may have a link to more substantial text, with a short line under it. If you need more explicative text, put it outside:

<div class="jupman-alert-principle"></div>
<div class="alert alert-info">

[IV PRINCIPLE](https://jupman.softpython.org/principles.html#V-PRINCIPLE): **You shall write tests!**

Who does **not** writes tests, falls into _Debugging Hell_!

IV PRINCIPLE: You shall write tests!

Who does not writes tests, falls into Debugging Hell!


NOTE: not mandatory, it’s mostly intended to tweak notebooks downloaded locally. Should be avoided in notebooks meant for students, as it’s more likely it will mess their configurations - also, they might copy the notebooks without knowing they contain the custom js and use weird extensions which could generate conflicts (such as double toc)

For notebooks in the root folder:

import jupman

Worksheets in in subfolders can use sys.path to locate the module

import sys
import jupman

Some reason for this ugliness is reported in this issue.

Launch unit tests

Inside worksheets you can run unittest tests.

To run all the tests of a test class, write like this


To run a single method, write like this:


Python Tutor

Among the various ways to embed Python Tutor, we decided to implement a special jupman.pytut() method. First you need to import the jupman module:

import sys
import jupman

Then you can put a call to jupman.pytut() at the end of a cell, and the cell code will magically appear in python tutor in the output (except the call to pytut() of course). To see Python Tutor you don’t need to be online

x = [5,8,4]
y= {3:9}
z = [x]


Python Tutor visualization

Beware of variables which were initialized in previous cells, they won’t be available in Python Tutor and you will get an error:

w = 8

x =  w + 5
Traceback (most recent call last):
  File "../jupman.py", line 2453, in _runscript
    self.run(script_str, user_globals, user_globals)
  File "/usr/lib/python3.7/bdb.py", line 578, in run
    exec(cmd, globals, locals)
  File "<string>", line 2, in <module>
NameError: name 'w' is not defined
Python Tutor visualization


Correctly rendering pandas in PDFs is not so easy (see issue), so far we created this little function which sometimes is handy:

import pandas as pd

lista = [['Rosanna', 'Gippalanda', 26, 100, 500, 300, 600, 600, 100, 300, 600, 300, 200, 400, 200, 300, 400, 500],
         ['Matilda', 'Zampola',    10, 500, 200, 300, 500, 400, 300, 200, 500, 300, 200, 400, 200, 300, 400, 500],
         ['Mario', 'Cipolli',      25, 300, 500, 100, 500, 300, 500, 100, 500, 300, 200, 400, 200, 300, 400, 500],
         ['Ugo', 'Sgarapirri',     30, 100, 400, 200, 500, 300, 200, 600, 300, 300, 200, 400, 200, 300, 400, 500]

df = pd.DataFrame(lista, columns =['Name', 'Surname', 'Age', *['Par'+str(i) for i in range(1,16)]])
df # web
Name Surname Age Par1 Par2 Par3 Par4 Par5 Par6 Par7 Par8 Par9 Par10 Par11 Par12 Par13 Par14 Par15
0 Rosanna Gippalanda 26 100 500 300 600 600 100 300 600 300 200 400 200 300 400 500
1 Matilda Zampola 10 500 200 300 500 400 300 200 500 300 200 400 200 300 400 500
2 Mario Cipolli 25 300 500 100 500 300 500 100 500 300 200 400 200 300 400 500
3 Ugo Sgarapirri 30 100 400 200 500 300 200 600 300 300 200 400 200 300 400 500
import jupman

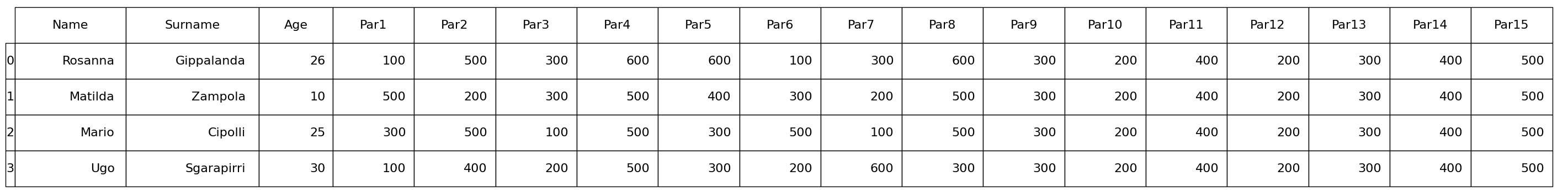

jupman.draw_df(df)  # image for pdf

Showing function help

Python help is already quite good, but adds two useless extra lines and only works as a print, so we defined jupman.get_doc:

def get_doc(fun):
    """ Returns the help of a function formatted in a faithful manner

        @since 3.3

Custom js and css

If you need custom js and/or css in a notebook, you can inject it by running


in the first cell, it will inject jupman.js and jupman.css

Show table of contents

Since 0.8, custom toc is disabled, try instead installing toc2 extension. If you still want the jupman toc (not recommended), execute


it will create the sidebar even when editing in Jupyter. To refresh the sidebar, just rerun the cell.

Note: hiding the jupman.init code cell will prevent the build system to embed the Javascript file jupman.js inside the page in the HTML website: this is still fine as it is fetched separately by settings in conf.py.
